Diesel Sprinters use glow plugs to help combustion during cold starting and, on some operating strategies, after startup. Depending on model year and engine, the system may use a glow-plug control module, relay, wiring, and individual glow plugs. A hard start does not identify the control module by itself.
What the Glow-Plug Control System Does
The engine control system determines when and how long to energize the glow plugs using temperature, voltage, and operating information. Each plug contains a heating element in or near a combustion chamber. The system supports ignition in cold conditions; it is not the engine’s main source of heat once normal combustion is established.
Because designs and test values vary, “timer relay” is not a universal name for every Sprinter glow-system component. Diagnosis should use the wiring and service information for the exact engine and model year.

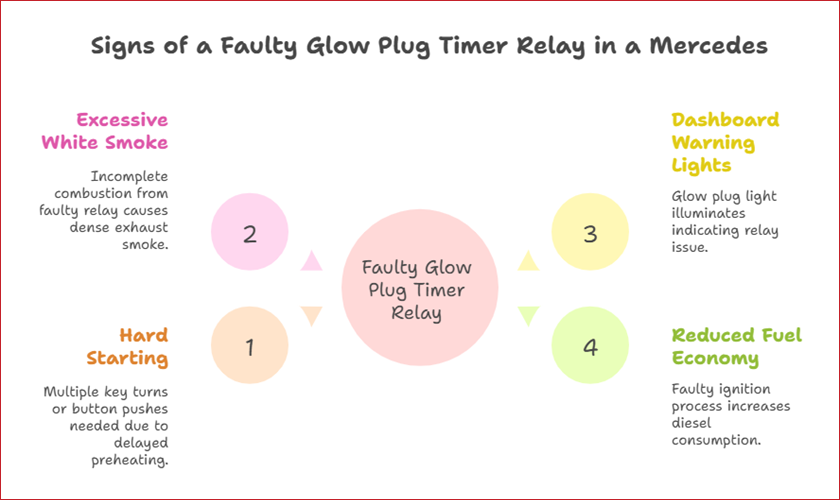

Symptoms That May Involve the Glow System
- Hard starting when cold: One or more failed glow plugs, a control-module or wiring fault, low cranking speed, weak battery, starter resistance, fuel-pressure problems, air intrusion, compression, sensors, or temperature-related fuel issues may be involved.
- Rough running immediately after a cold start: The glow system is one possibility, but injectors, fuel delivery, compression, air supply, and engine-management faults can create similar symptoms.
- White exhaust smoke during starting: Unburned fuel may create white smoke, while coolant or other faults can also change exhaust appearance. Smoke that continues, becomes heavy, or enters the cabin deserves prompt inspection.
- Glow-plug or check-engine warning: Record the exact message and preserve fault information. A code may identify a circuit or cylinder, but wiring, connectors, supply voltage, the plug, and the control unit still need testing.

How the Fault Is Diagnosed
A technician may review cold-start behavior, battery condition, cranking speed, fault codes, supply voltage, grounds, wiring, connectors, and the resistance or current behavior of individual glow-plug circuits using the appropriate procedure.
Do not apply battery voltage directly to a glow plug unless the service information explicitly requires it. Modern glow plugs may operate below battery voltage, and an uncontrolled test can damage the plug or create a burn or fire hazard. Glow plugs can also seize or break during removal, so replacement technique depends on access, engine temperature, corrosion, and the plug’s condition.
Why Replacing the Module First Can Waste Money
A code involving the glow system may come from one failed plug, damaged wiring, connector problems, low system voltage, or a control module. Replacing every plug or the module without testing may leave the original fault in place. The repair should follow the measured failure and the condition of related components.
When to Arrange Service
Arrange diagnosis when the warning returns, cold starting becomes difficult, the engine runs roughly after startup, or heavy smoke appears. If the van cannot start safely, smoke is excessive, or a burning electrical odor is present, stop repeated starting attempts and arrange assistance.
